Integrating SAP EWM with Automated Material Handling Equipment (MFS)

SAP Extended Warehouse Management (EWM) includes a Material Flow System (MFS) that directly integrates automated material handling equipment with the warehouse management system. MFS enables real-time control and communication with programmable logic controllers (PLCs) using standardized telegrams over TCP/IP, allowing EWM to handle routing, directions, and exceptions without a separate warehouse control system (WCS).

Quick Answer

SAP EWM's Material Flow System (MFS) embeds PLC communication inside EWM so the system can directly control conveyors, sorters, cranes, and other PLC-controlled equipment via standardized TCP/IP telegrams — removing the need for an external WCS and providing a single source of truth for inventory and material flow.

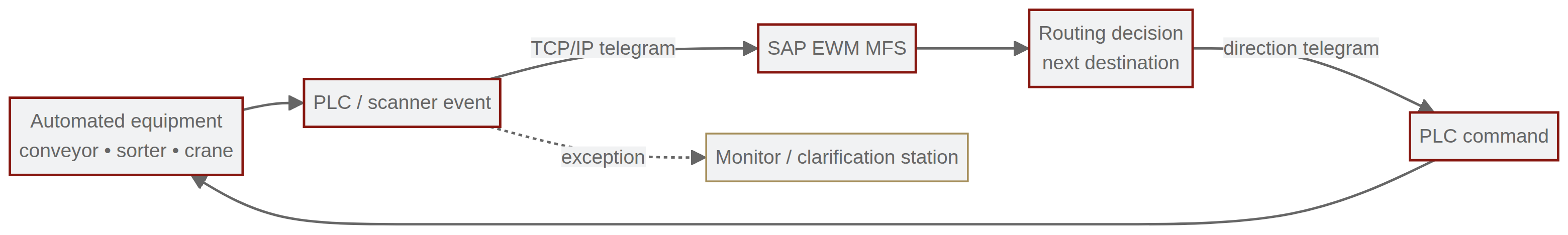

sap ewm fs telegram loop

How EWM communicates with PLCs

  • MFS (Material Flow System) is embedded within SAP EWM.
  • Communication with PLCs (programmable logic controllers) uses standardized telegrams over TCP/IP.
  • Telegrams define the data exchanged for controlling automated equipment: PLCs send status or sensor telegrams (for example when a handling unit passes a scanner) and EWM responds with direction or routing telegrams based on routing rules and inventory state [1].
  • SAP provides PLC emulators that let consultants and integrators test telegram traffic and routing logic without physical hardware.

Key acronym definitions (first use)

  • MFS: Material Flow System
  • PLC: Programmable Logic Controller
  • WCS: Warehouse Control System
  • AS/RS: Automated Storage and Retrieval System
  • HU: Handling Unit
  • AGV: Automated Guided Vehicle

Real-world use cases

  • Automated Storage and Retrieval Systems (AS/RS): EWM MFS directs cranes or stacker cranes to specific coordinates to store or retrieve pallets.
  • Conveyor routing: Direct totes or containers to specific picking stations based on the items required for an order.
  • Automated sorters: Divert packages to the correct shipping lane based on carrier or destination postal code.
  • Integration with diverse PLC-controlled equipment: conveyors, AGVs, cranes, automated sorters, etc., via standardized telegrams.

Error handling

  • PLCs can send exception telegrams when problems occur (for example, unreadable barcodes or unexpected full bins).
  • EWM can be configured to route a handling unit (HU) to an error clarification station or trigger alerts in the Warehouse Management Monitor for manual intervention.
  • Robust testing of error scenarios is important to prevent material flow blockages during go-live.

Common pitfalls

  • Inadequate planning for communication protocols and telegram structures can cause integration challenges across different PLC vendors.
  • Underestimating the complexity of real-time control logic and the need for specialized PLC programming expertise may lead to project delays.
  • Insufficient testing of error handling scenarios often results in material flow blockages at go-live.

Frequently Asked Questions (FAQ)

Q: What are the benefits of using SAP EWM MFS over a separate WCS?
A: It removes middleware, reduces licensing and maintenance costs, and provides a single source of truth for inventory and material flow.

Q: Can SAP EWM MFS integrate with various types of equipment?
A: Yes. MFS can integrate with almost any PLC-controlled equipment — conveyors, automated guided vehicles (AGVs), cranes, sorters — using standardized telegrams.

Q: How do you test MFS implementations?
A: SAP supplies PLC emulators that allow testing of telegram traffic and routing logic without the physical hardware, enabling validation of scenarios before connecting live equipment.
